QB Digital Torque Wrench
QB Digital Torque Wrench
Precision Torque Control for Critical Fastening
The Fanyaa QB Digital Torque Wrench is designed for controlled fastening, torque verification and assembly quality management. With torque ranges from 0.5 to 1000 N·m, it combines preset torque settings, TRACK, PEAK and PRE operating modes, sound and LED alerts, 999-record storage and optional Bluetooth transmission.
Reduce Fastening Errors with Controlled Torque
Incorrect torque can affect joint reliability, product quality and assembly safety. Under-tightening may result in loose fasteners, while excessive torque can damage bolts, threads or components. The QB Digital Torque Wrench gives operators real-time torque readings and clear target alerts, helping reduce guesswork during critical fastening tasks.

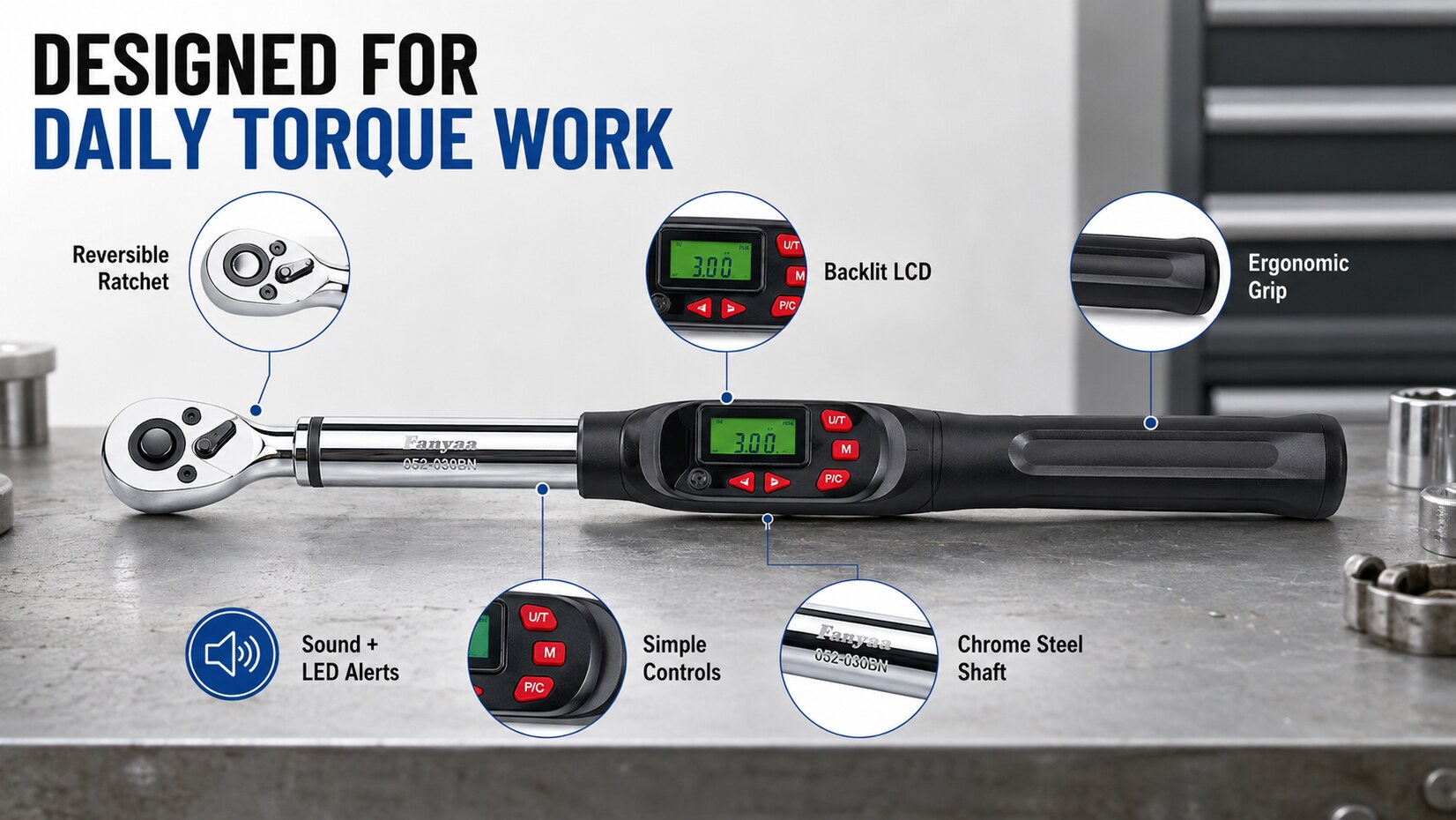

Designed for Efficient Daily Torque Work
High-Accuracy Torque Measurement
Available in ±1% or ±2% accuracy configurations for different assembly and quality-control requirements.
Preset Torque Setting
Set the required target torque before operation to create a more consistent fastening process.

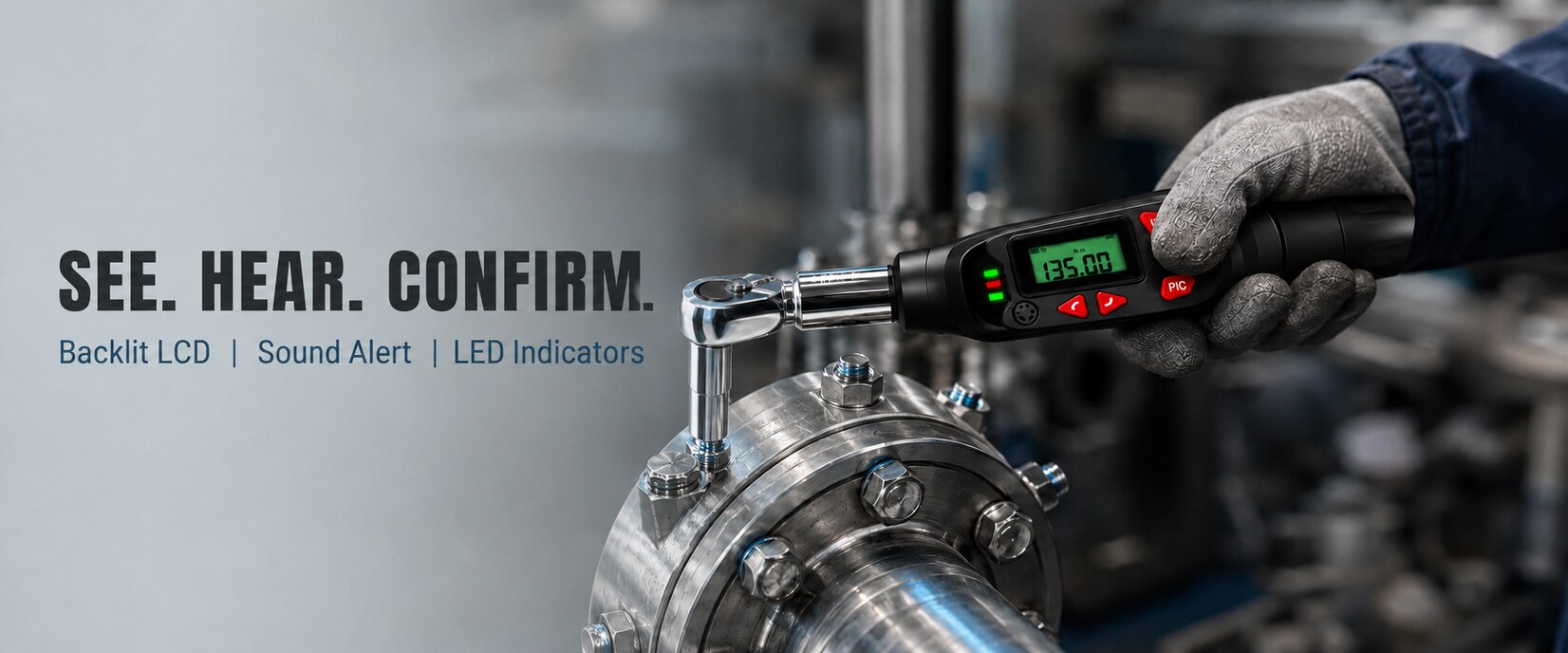

Sound and LED Alerts
Audible and visual alerts help operators identify when the preset torque has been reached.
Backlit Digital Display
The clear LCD screen provides easy torque-value visibility in workshops and low-light environments.
Reversible Ratchet Head
The ratchet direction can be switched for different fastening and operational requirements.
Ergonomic Handle
The shaped handle provides a comfortable and stable grip during repeated torque operations.

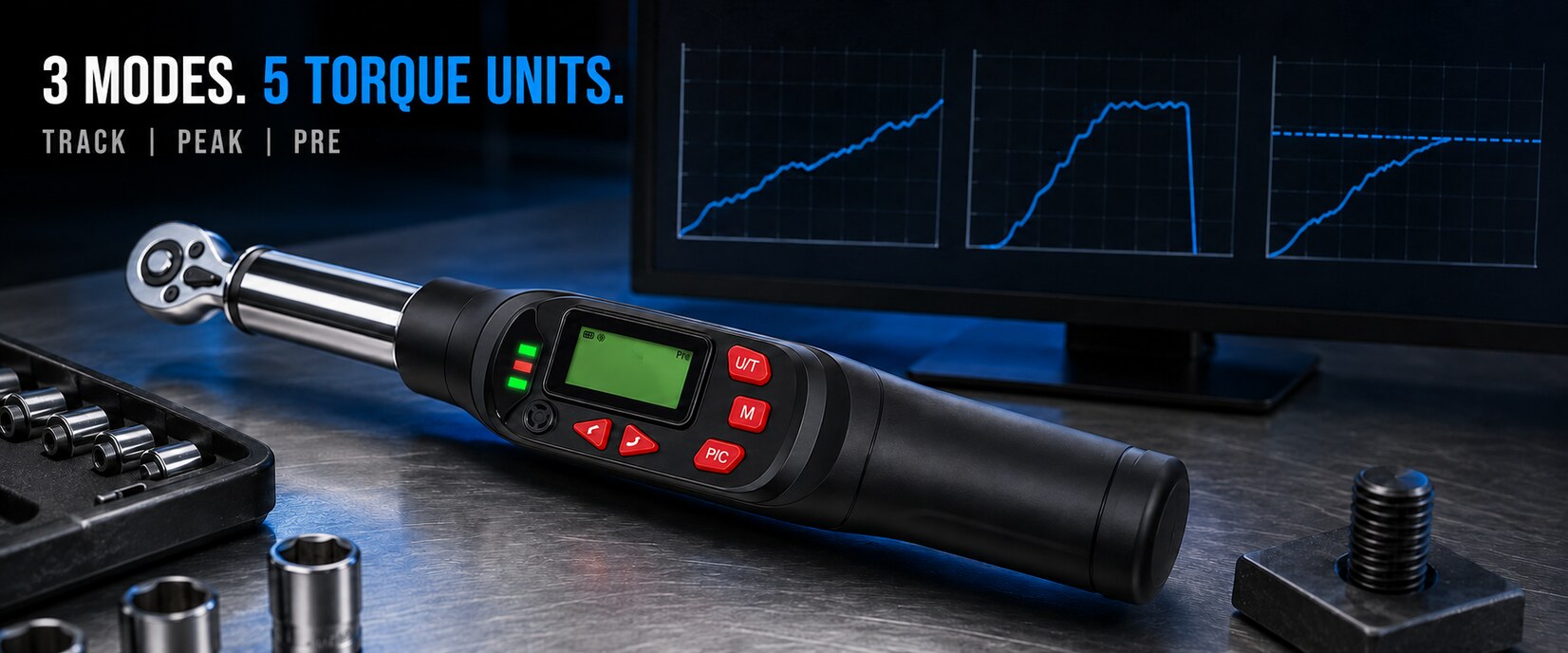

Three Operating Modes for Different Torque TasksTRACK Mode
Displays the applied torque value continuously in real time.
PEAK Mode
Captures and displays the maximum torque value reached during operation.
PRE Mode
Allows the operator to set a target torque and receive sound and LED alerts when approaching or reaching the preset value.
Five Selectable Torque Units
The QB Digital Torque Wrench supports N·m, lbf·ft, lbf·in, kgf·cm and kgf·m, making it suitable for different engineering standards and international applications.
Set, Tighten and Confirm
1. Set the Target Torque
Select the required torque unit, operating mode and target value.
2. Apply Torque
Install the correct socket and tighten the fastener smoothly.
3. Confirm the Result
Use the LCD reading, sound alert and LED indicators to confirm the tightening result.

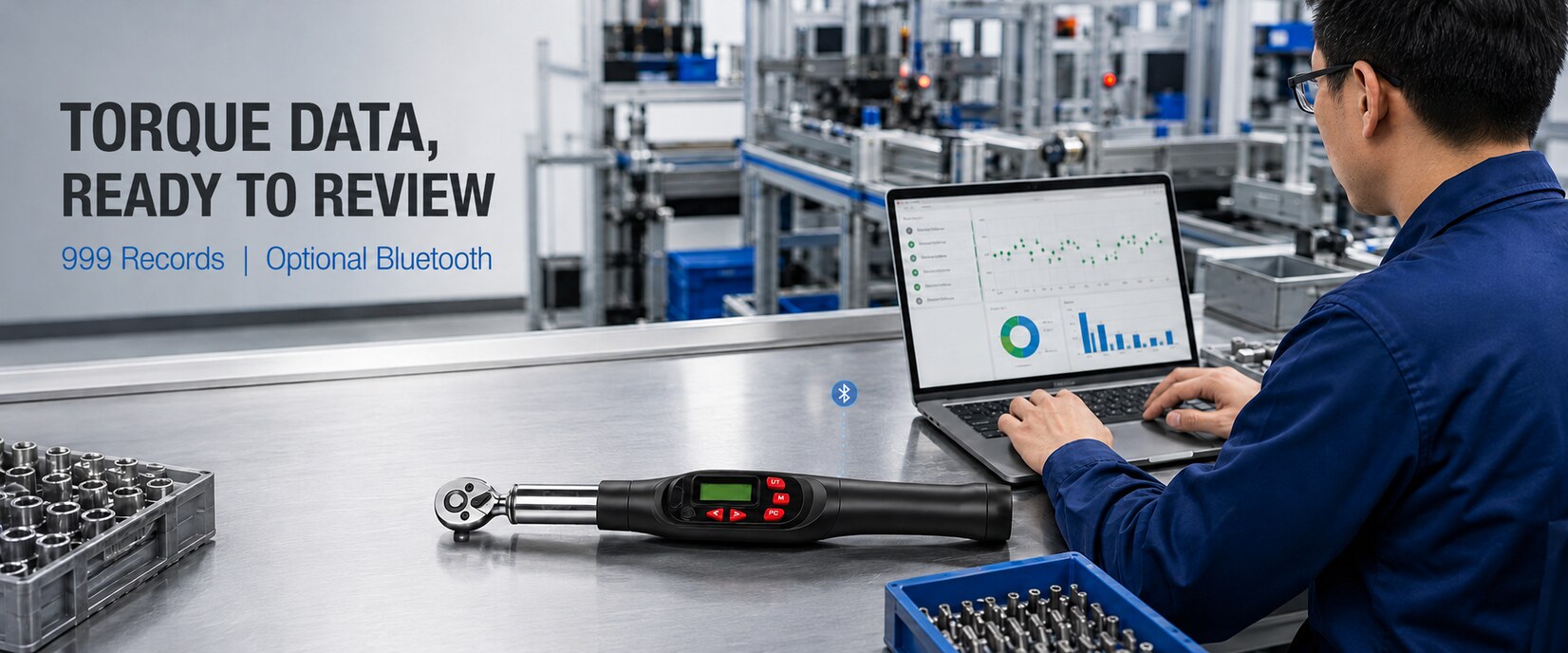

Store and Review Torque Results
The QB Digital Torque Wrench can store up to 999 torque records for later viewing, review and deletion. Selected configurations are available with optional Bluetooth transmission, allowing torque results to be transferred for further quality review and process documentation.
Key points：
Bluetooth is an optional configuration. Please confirm your data-transfer requirements before ordering.

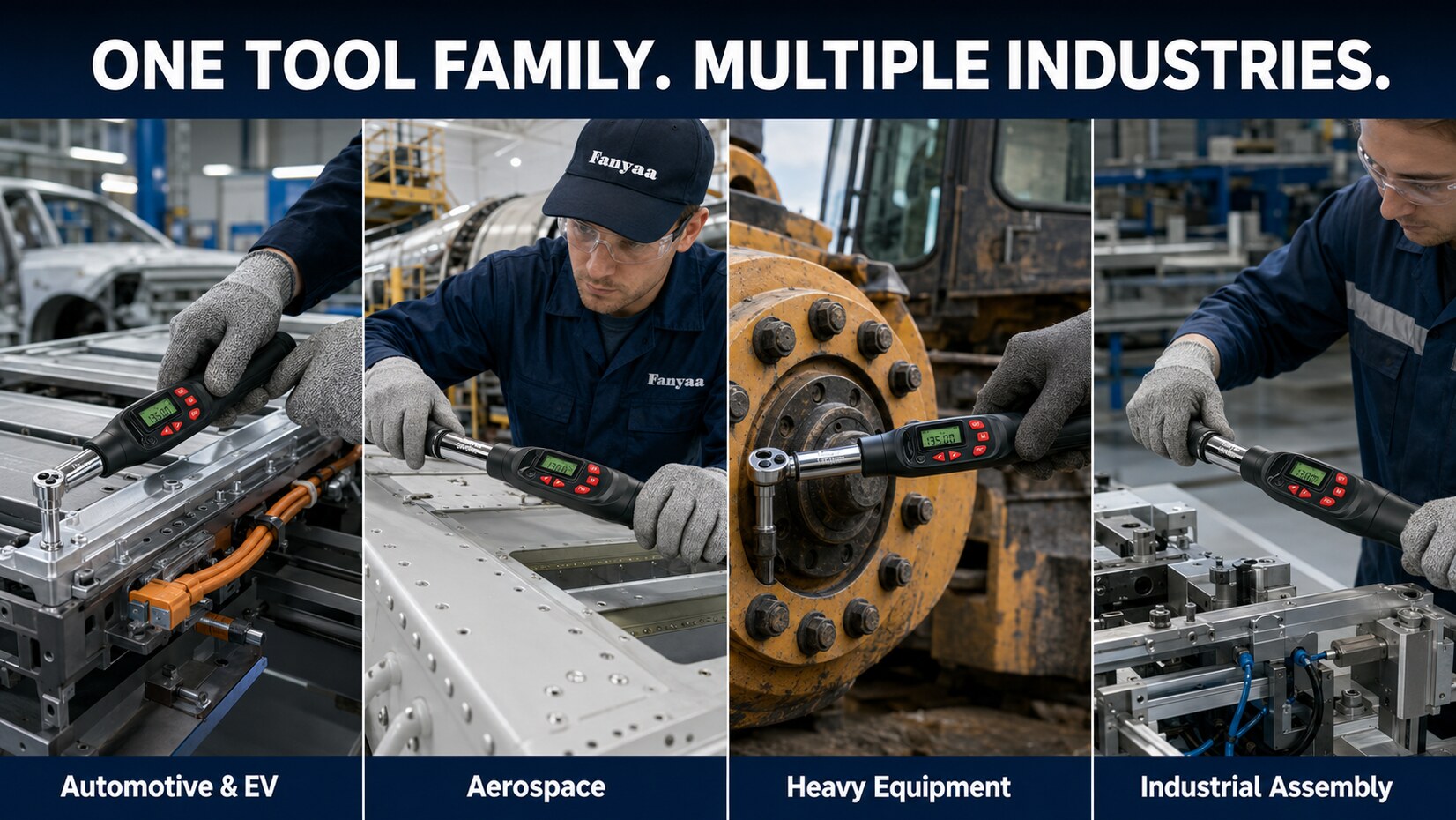

Digital Torque Control for Industrial Applications
Automotive and EV Assembly
Torque control for battery frames, chassis components, motors and automotive assemblies.
Aerospace Maintenance
Controlled fastening for precision components and maintenance operations.
Heavy Equipment
Torque inspection and fastening for machinery, flanges and structural components.
Industrial Assembly
Suitable for equipment production, repair, installation and quality-control processes.

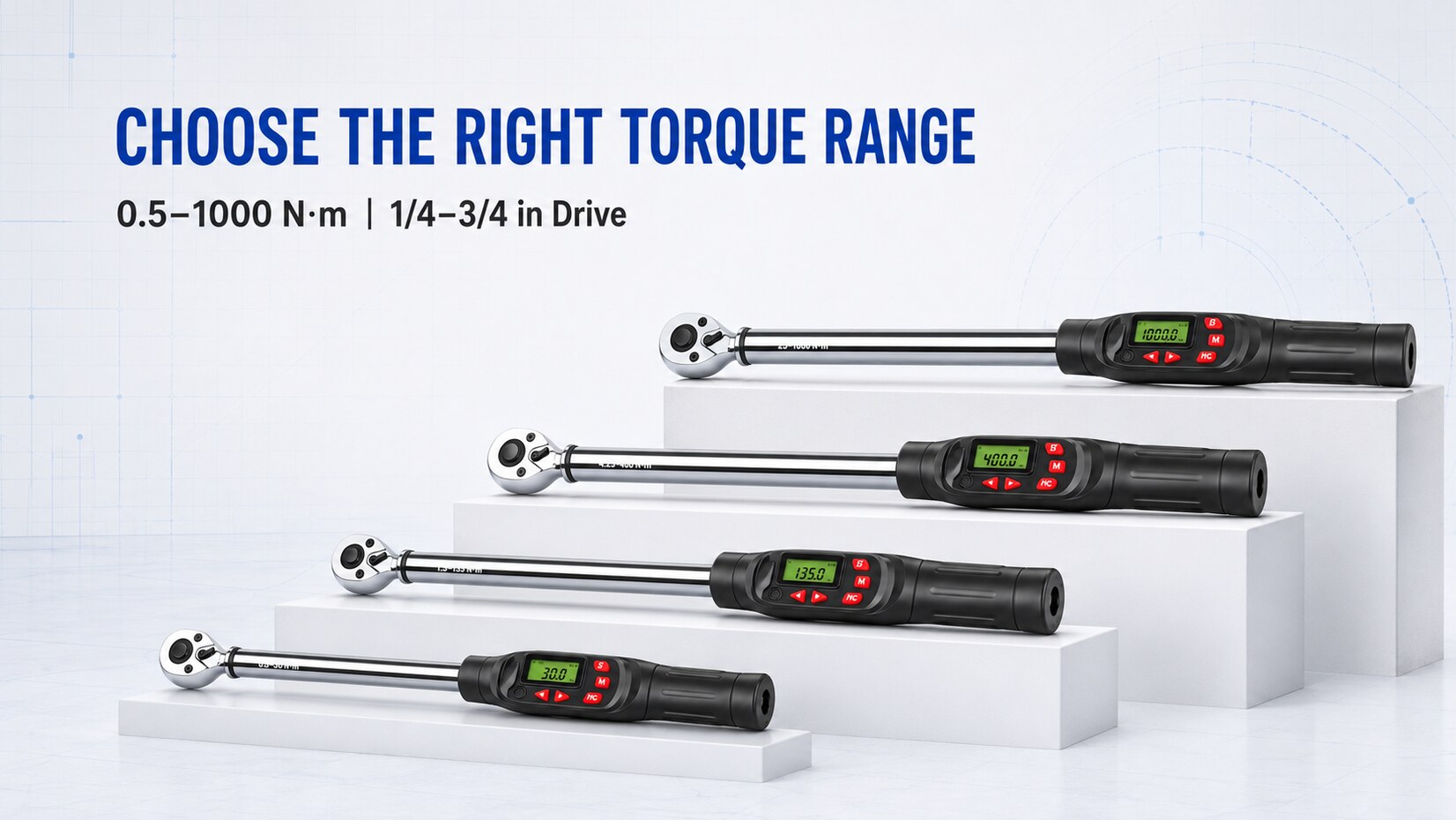

QB Digital Torque Wrench Models and Torque Ranges
| Drive Size | Available Torque Ranges |
|---|---|
| 1/4 in | 0.5–10、1–20、1.5–30 N·m |
| 3/8 in | 1.5–30、3–60、4.25–85、6.8–135 N·m |
| 1/2 in | 4.25–85、6.8–135、10–200、17–340、20–400 N·m |
| 3/4 in | 25–500、30–600、40–800、50–1000 N·m |
For better model selection, please provide your normal working torque, required drive size, accuracy requirement, tightening direction and application.
Frequently Asked Questions
Q1. How do I choose the correct torque range?
Choose a model that keeps your normal working torque within the recommended working range. Send us your target torque and drive size if you need help selecting a model.
Q2. What is the difference between ±1% and ±2% accuracy?
The ±1% configuration is suitable for applications with tighter process-control requirements, while ±2% models are suitable for general industrial fastening. Please confirm the required measuring direction before ordering.
Q3. What operating modes does the QB Digital Torque Wrench support?
The tool supports TRACK, PEAK and PRE modes for real-time torque monitoring, maximum-value capture and preset torque operation.
Q4. Can the wrench store torque results?
Yes. The tool can store up to 999 torque records for viewing, review and deletion.
Q5. Is Bluetooth included as standard?
No. Bluetooth transmission is an optional configuration. Please state your data-transfer requirements in the RFQ.
Q6. Which torque units are available?
The selectable units include N·m, lbf·ft, lbf·in, kgf·cm and kgf·m.
Q7. Can the wrench be used clockwise and counterclockwise?
The QB supports bidirectional torque measurement. Required accuracy and direction should be confirmed according to the selected model.
Q8. Is OEM customization available?
Logo, packaging and selected product configurations can be discussed based on the required quantity and project specifications.
Need Help Selecting the Right QB Digital Torque Wrench?
Send us your target torque range, drive size, accuracy requirement, application, order quantity and Bluetooth requirement. Our team will recommend the most suitable QB model for your project.
